VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Miami, FL | Westlight Windows Miami

The VLX 138 Panoramic Sliding Door is a luxury large-span slider built for one thing: walls of glass that move. You get expansive, uninterrupted views, an ultra-smooth glide on stainless bearings, and a frame profile that almost disappears. For modern homes and high-rise condos across Miami, Florida, it’s the upgrade that turns a living room into an indoor-outdoor experience. Westlight Windows Miami is an authorized ViewLux installation partner, which means your VLX 138 is installed to manufacturer spec, warranty-safe, and sealed for our coastal climate. Call (850) 753-2730 to talk specs or schedule a site measurement.

Call (850) 753-2730

Product Overview – VLX 138 Panoramic Sliding Door

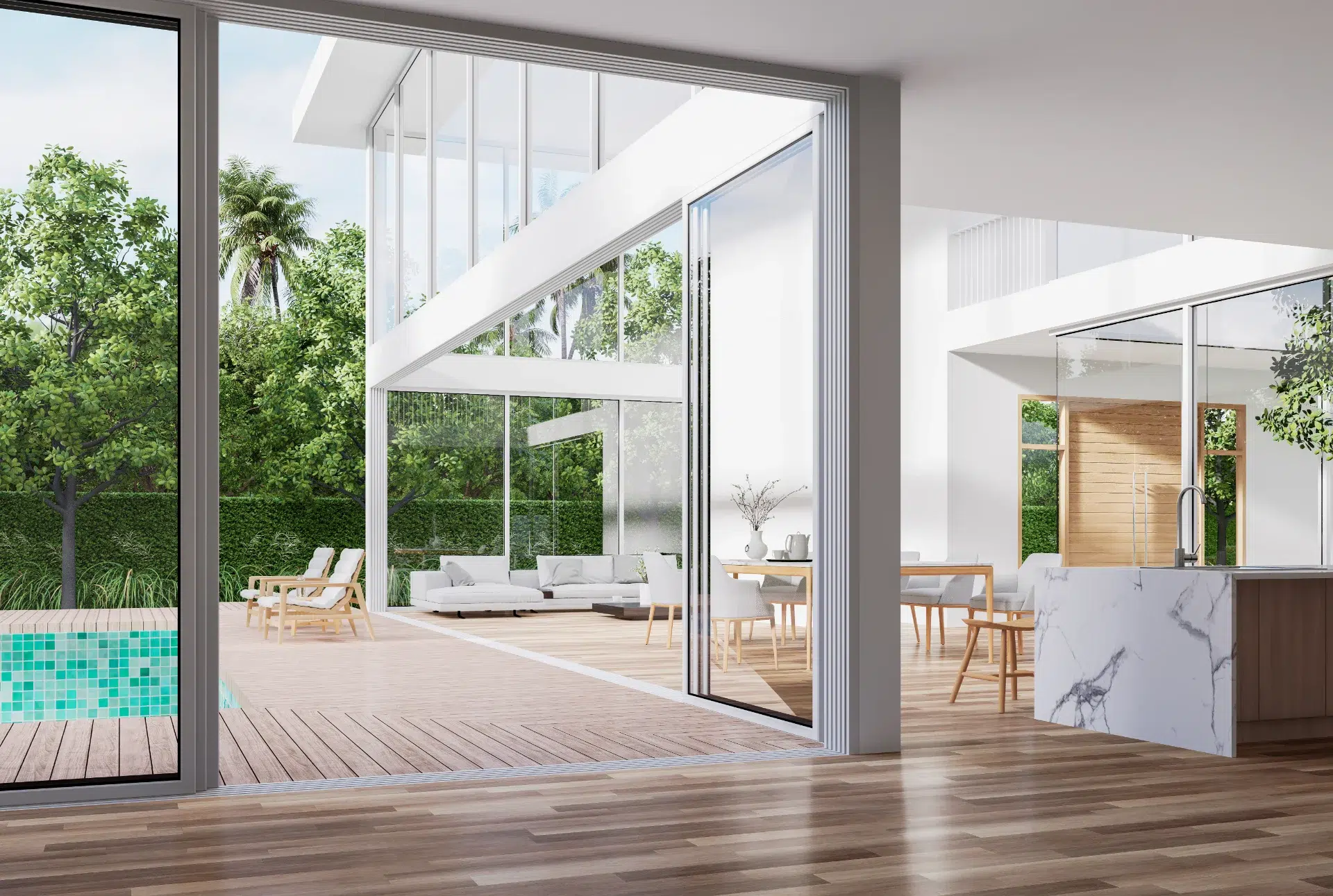

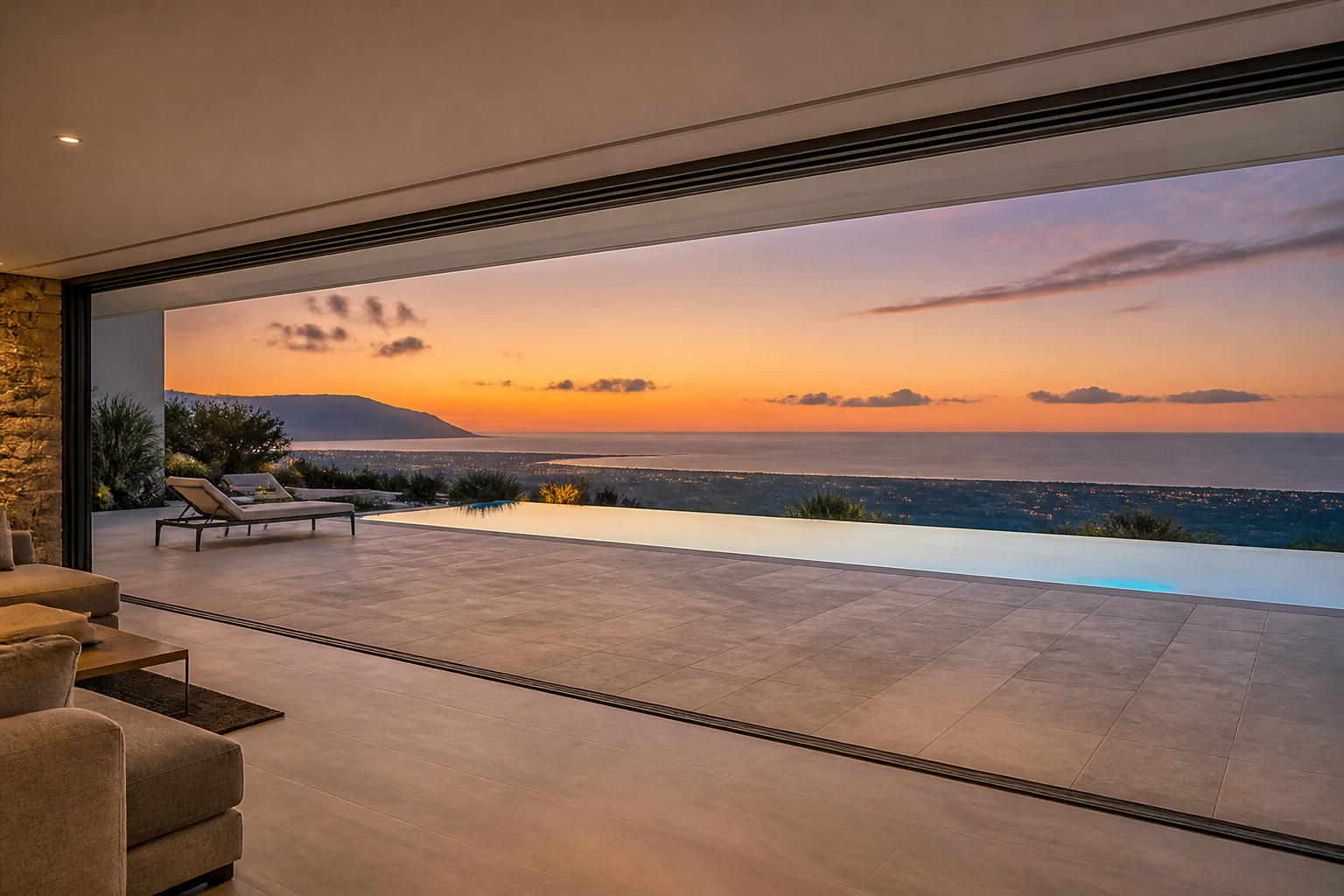

The VLX 138 represents ViewLux’s approach to panoramic glazing: push the engineering limits on span and glass weight, then refine the hardware until the panel feels nearly weightless. The result is a door system that frames Miami’s water views, skyline sunsets, and garden spaces without bulky mullions interrupting the sightline.

We see this series specified most often in Miami Beach penthouses, Coral Gables waterfront estates, and Coconut Grove modern builds. The reasons are consistent. Homeowners want a 20-foot or 30-foot opening that slides open with two fingers of pressure. Architects want clean lines and minimal visible frame. Builders want a system that installs predictably and doesn’t leak during a summer downpour.

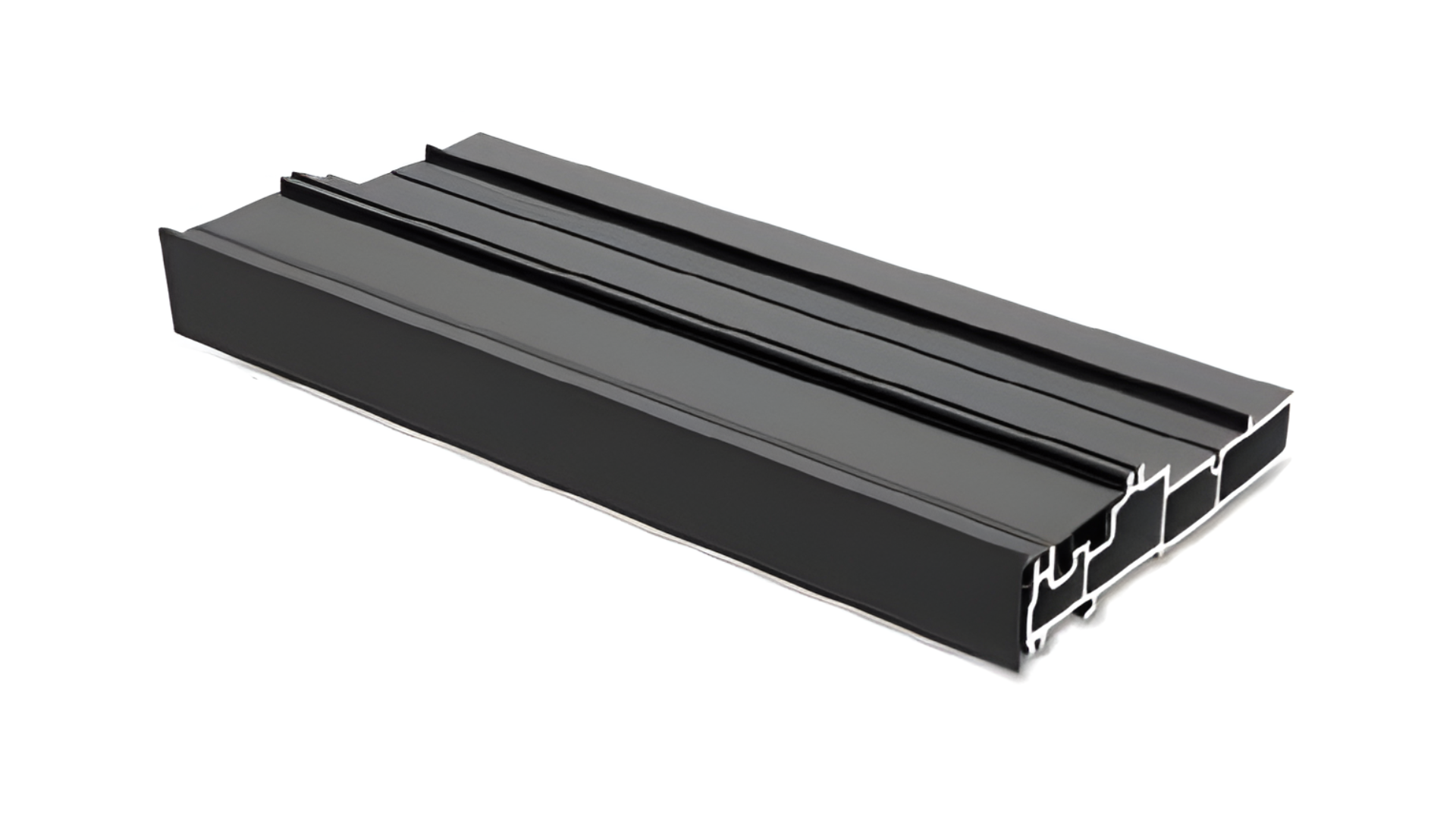

The engineering starts with a 0.138-inch wall thickness on the aluminum profiles. That’s a heavier extrusion than many mid-tier sliders on the market, and it matters. Thicker walls resist deflection under wind load, hold laminated impact glass without sagging, and stay square over decades of daily use. The 1.535-inch profile width keeps sightlines tight while giving the frame enough structural meat for multi-track configurations.

Track layouts include 2-track, 3-track, and 4-track. A 2-track configuration means one fixed panel and one sliding panel. Three and four-track setups let multiple panels tuck behind one another for wider clear openings – which is exactly what you want when you’re trying to blur the line between a Miami kitchen and a covered terrace. We have installed VLX 138 units spanning up to 36 feet wide, with panel weights that would overwhelm a lighter frame system.

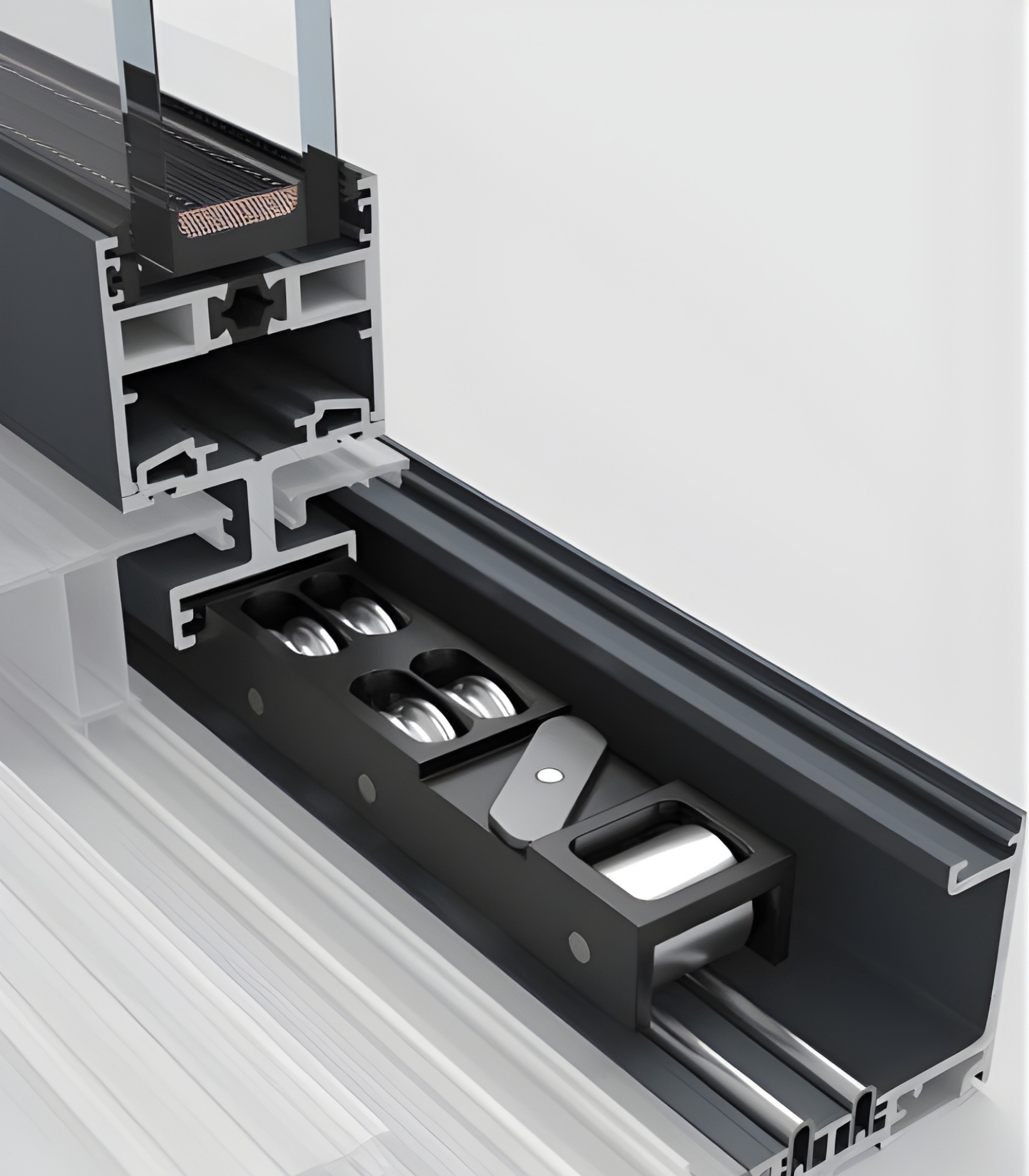

The stainless bearing hardware is the part buyers notice immediately. There’s no drag, no stutter, no wrestling with the panel. Push it and it glides. That comes from precision-machined bearing housings matched to the track profile. It’s also quieter than nylon-wheel systems, which matters in a bedroom or office where a late-night breeze through the opening shouldn’t sound like a freight train.

Technical Specifications

These are the numbers behind the VLX 138 series. Specs shown are for standard configurations; your exact build may vary by panel size, glass package, and track layout.

• Wall thickness: 0.138-inch aluminum extrusion.
• Profile width: 1.535 inches.
• Maximum span: Up to 36 feet wide.
• Track configurations: 2-Track, 3-Track, 4-Track.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen, Sliding Screen.
• Sill options: Flush Sill, Low-Profile Sill, Recessed Sill.
• Thermal performance: Polyamide thermal break, NFRC-rated.
• Installation standard: AAMA 2400/2410 compliant.
• Perimeter sealant: AAMA 812 low-expansion foam on all joints.
• Impact option: Laminated impact-resistant glass, wind-load rated.

Performance Features

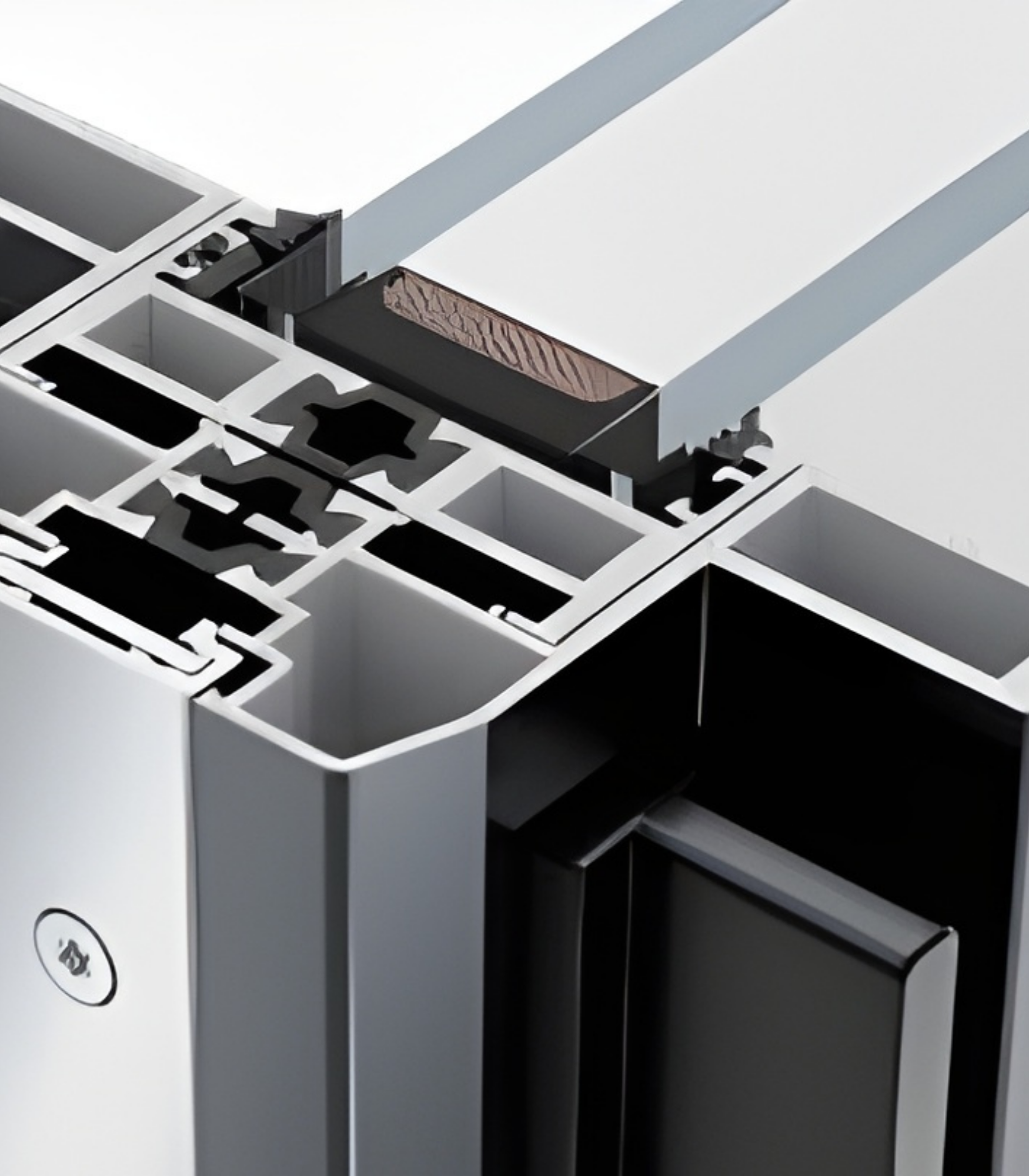

Thermal Efficiency. A polyamide thermal break separates the interior and exterior aluminum faces, cutting conductive heat transfer in half compared to non-thermal frames. In a Miami climate that means lower cooling loads, less condensation at the sill, and an NFRC-rated assembly you can actually cite on an energy audit.

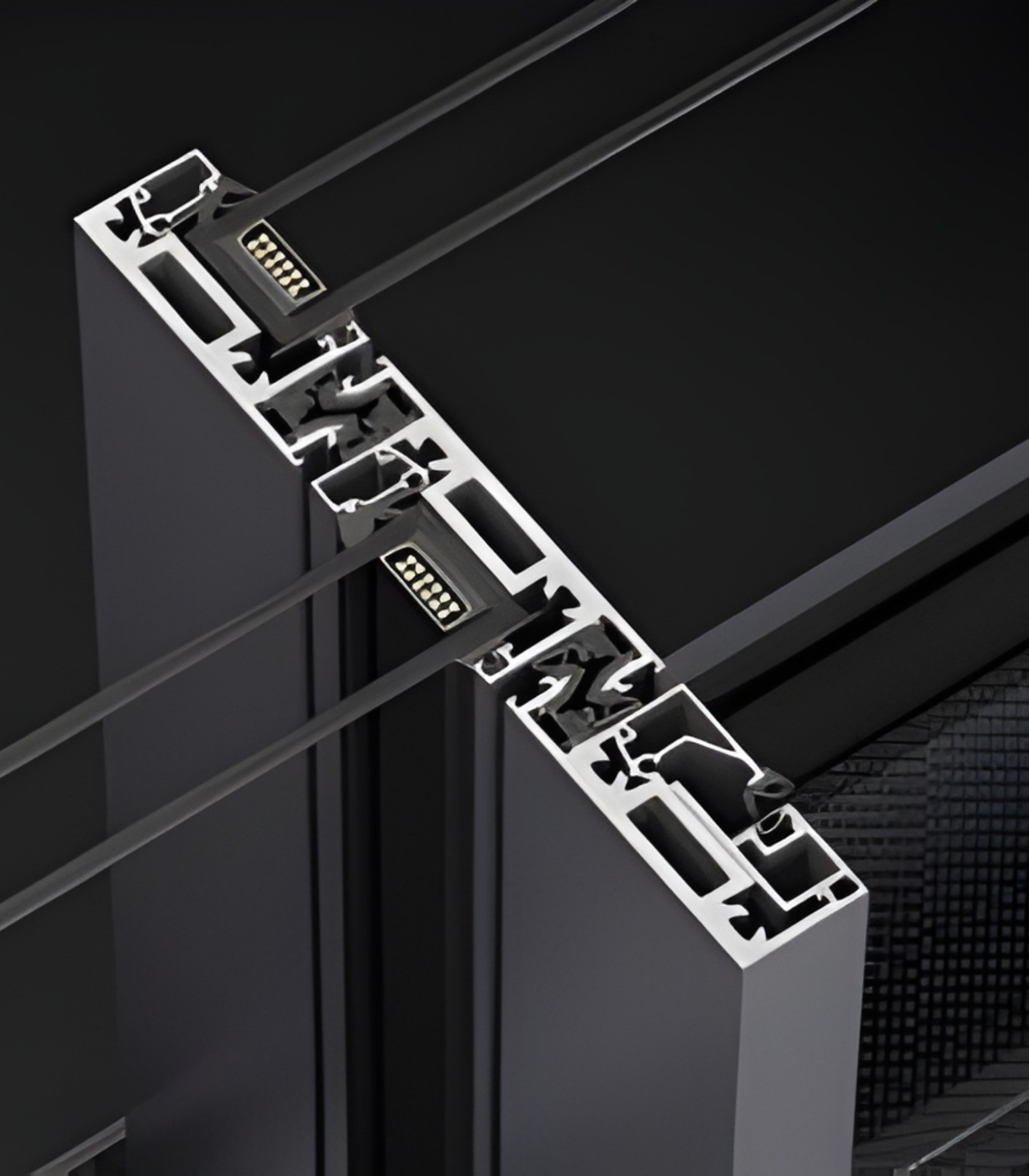

Acoustic Performance. Heavy glass packages and tight perimeter seals work together to knock down street noise, pool pumps, and the ever-present Miami construction soundtrack. The VLX 138’s gasketed interlock between panels is where most of the sound control happens, and it does measurable work.

Airtightness & Weather Seal. Continuous compression gaskets run the full perimeter of every panel. Combined with the AAMA 812 foam-sealed frame, that means air infiltration stays minimal – which is why a VLX 138 won’t whistle when a cold front whips through in January.

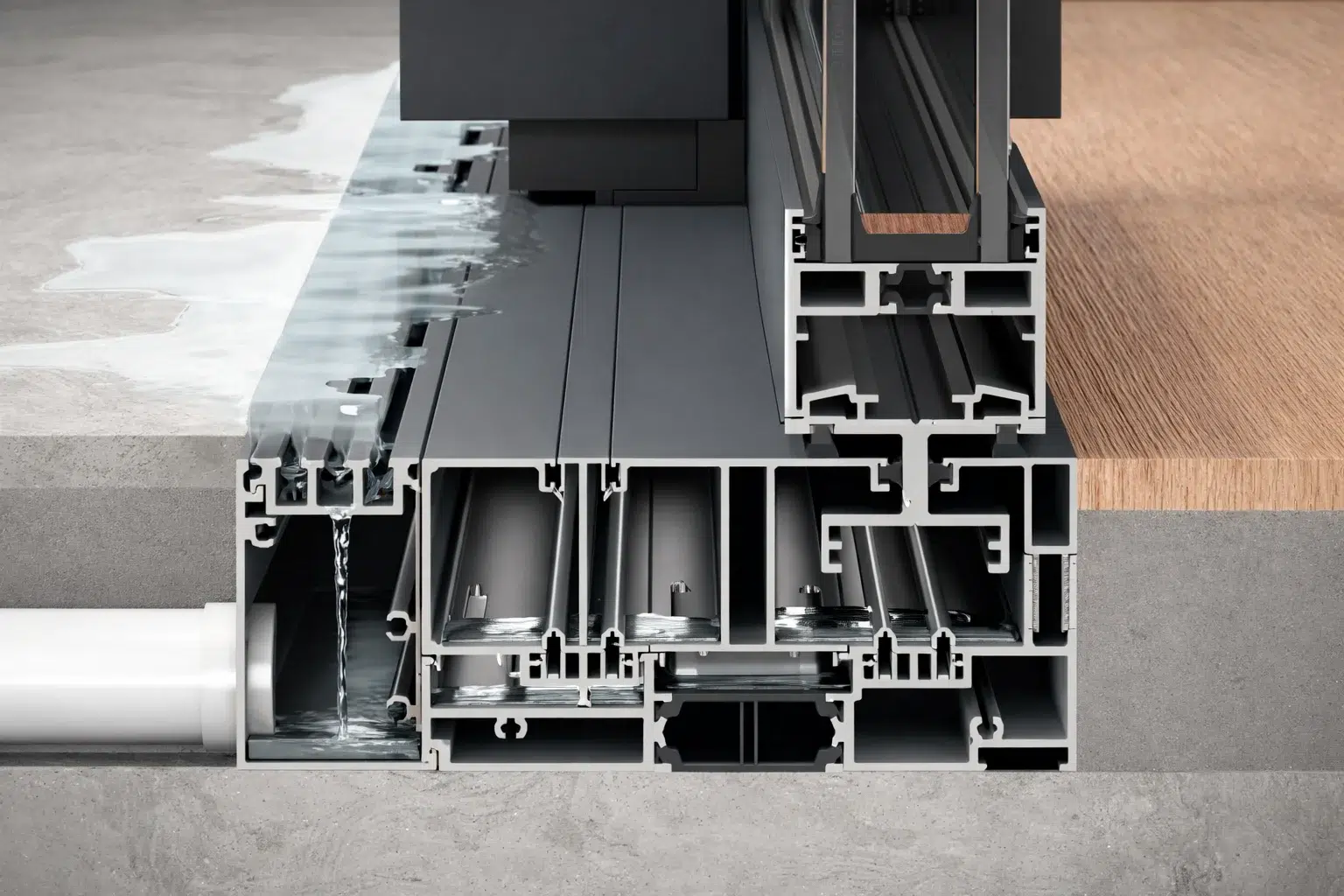

Waterproofing. The sill is engineered as a secondary drainage plane. Water that gets past the first gasket line hits a sloped internal channel and drains back outside, not into your flooring. That detail matters more in Miami than most markets; our afternoon storms deliver water horizontally, not vertically.

Wind Resistance. Miami-Dade’s wind load requirements are among the strictest in the country. The VLX 138 is available in impact-resistant laminated glass configurations with wind-load ratings sized for coastal exposure zones. We coordinate engineering letters and permit documentation on every install in the county.

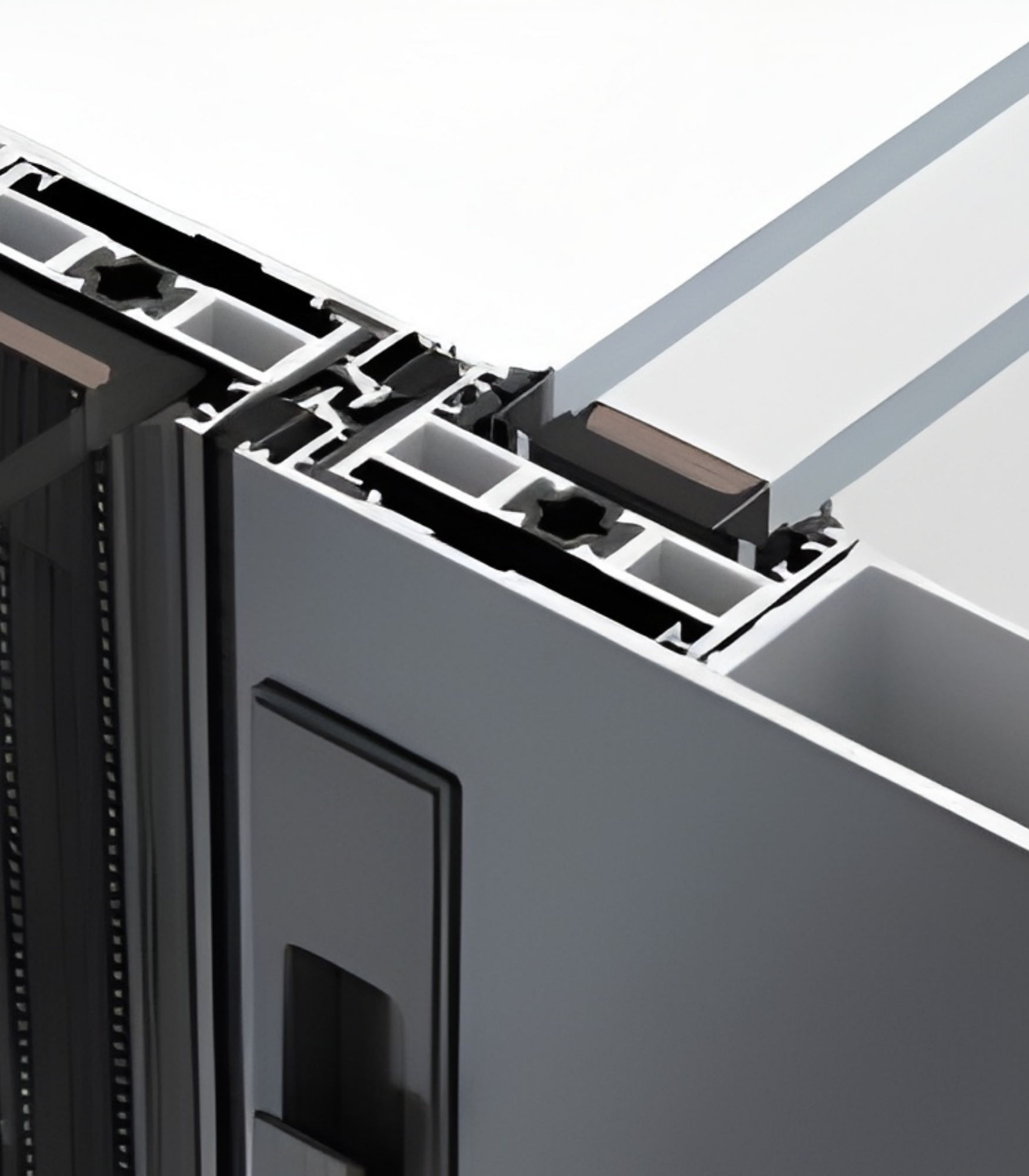

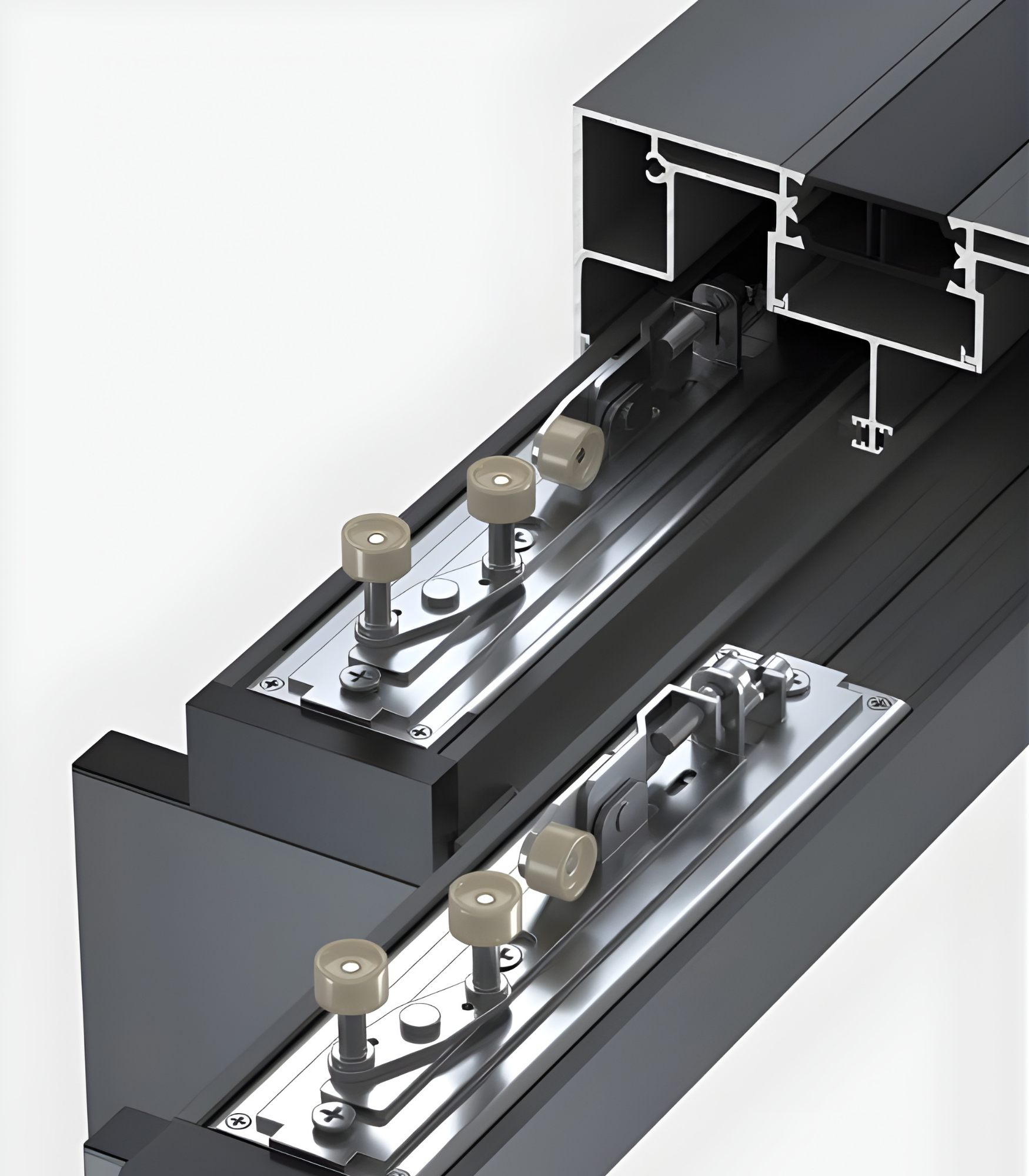

Security & Hardware. Multi-point locking hardware and tamper-resistant fasteners are standard across the series. The 0.138-inch wall profile gives the lock housings real anchoring depth, and the stainless bearing carriages are enclosed to prevent lifting.

Color & Glass Options

The VLX 138 ships in six finish options, and most Miami buyers split into two camps. The first wants a bold, contemporary frame: Premium Black against white stucco, or Anodized Silver against glass railings and concrete. The second camp wants the frame to disappear into the architecture: Bronze, Champagne, or Teak Wood to warm up a space without competing with the view. Pure White is the quiet workhorse, especially on renovated mid-century homes in the Upper East Side and Morningside.

Glass selection depends on orientation and what’s outside the window. Clear glass is the right call when the view is the product and energy performance comes from aftermarket film or shade. Low-E is our default recommendation for west-facing exposures in Miami – it drops solar gain meaningfully during the 2 p.m. to 6 p.m. heat peak. Frosted and Obscure glass work for bathrooms, entry corridors, and any opening facing a neighbor 12 feet away. Black Tint and Gray Tint are the high-privacy options that also cut glare on TV walls and home offices.

Installation by Westlight Windows Miami in Miami

We won’t bury the lede here: a panoramic sliding door is only as good as the installation. We have removed VLX 138 panels after botched installs where the frame was out of square by three-eighths of an inch. The panel binds. The locks don’t line up. The warranty dies. That’s the reality of a product with 36-foot spans and panel weights approaching 500 pounds.

Our installation process for every VLX 138 in Miami starts with a pre-install inspection of the rough opening. We check the substrate, the header load path, and the existing waterproofing before any aluminum touches the building. If the opening is out of spec, we tell you before we set the frame, not after.

Then we set the frame level, plumb, and square. Not “close enough.” We’re checking with digital levels and lasers because a 36-foot track shows every fraction of an inch of error at the far end. The frame gets shimmed, anchored, and set into place before glass goes in.

Perimeter sealing follows AAMA 812, which means low-expansion foam on every joint – head, jambs, sill – then a continuous sealant bead on the exterior face. That foam-and-sealant combination is what keeps Miami’s wind-driven rain from finding its way behind the frame. Every opening gets a final water test before we hand it over. We also back up our installs with AAMA 2400/2410 compliance on the finished assembly, which is the standard your building inspector will reference when they sign off.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Lead time for a VLX 138 typically runs 6 to 10 weeks from final shop drawing approval to delivery at our Miami warehouse. Custom glass packages like impact laminated Low-E or large-format panels can push toward 12 weeks. Call (850) 753-2730 and we’ll give you a current lead-time estimate based on your spec.

Does the VLX 138 qualify for energy tax credits? The VLX 138 can qualify for federal energy tax credits in 2025 and 2026 when configured with NFRC-rated Low-E glass packages that meet the current ENERGY STAR criteria for the South climate zone. The credit amount depends on the door’s U-factor and SHGC ratings. We can provide the NFRC sticker data for your exact configuration so your accountant can file accurately.

What warranty comes with the Panoramic Sliding Door? The VLX 138 carries a manufacturer warranty through ViewLux covering the frame, glass, and hardware in normal residential use, with separate coverage terms for the stainless bearing assembly and the finish. Coverage requires installation by an authorized partner, which is where Westlight Windows Miami comes in: our installation satisfies the manufacturer’s warranty conditions.

Can I customize the size? Yes, within the series limits. The VLX 138 is built to your rough opening dimensions up to a 36-foot maximum span. Panel widths, heights, and track configurations are specified per project rather than pulled from stock sizes. We measure on-site in Miami before ordering so the production work matches the real opening, not the architectural drawing that’s off by an inch and a half.

How do I maintain aluminum frames? Wash the frames with mild soap and water every few months, and clean the track more often. Miami’s salt air and sand will accumulate in the bottom track and accelerate roller wear if you let it sit. The stainless bearing carriages are sealed and don’t need lubrication. Keep the drain holes clear, inspect the gaskets once a year, and the door will operate smoothly for decades.

Get a Quote – VLX 138 Panoramic Sliding Door in Miami

If you’re planning a VLX 138 in Miami, start with a conversation and a measurement. We’ll walk your property, talk through track configurations and glass packages, and give you a written line-item quote with no surprises. Call Westlight Windows Miami at (850) 753-2730 to schedule your free on-site measurement and get the project moving.

Written by the team at Westlight Windows Miami, authorized ViewLux installation partner serving Miami, FL.
